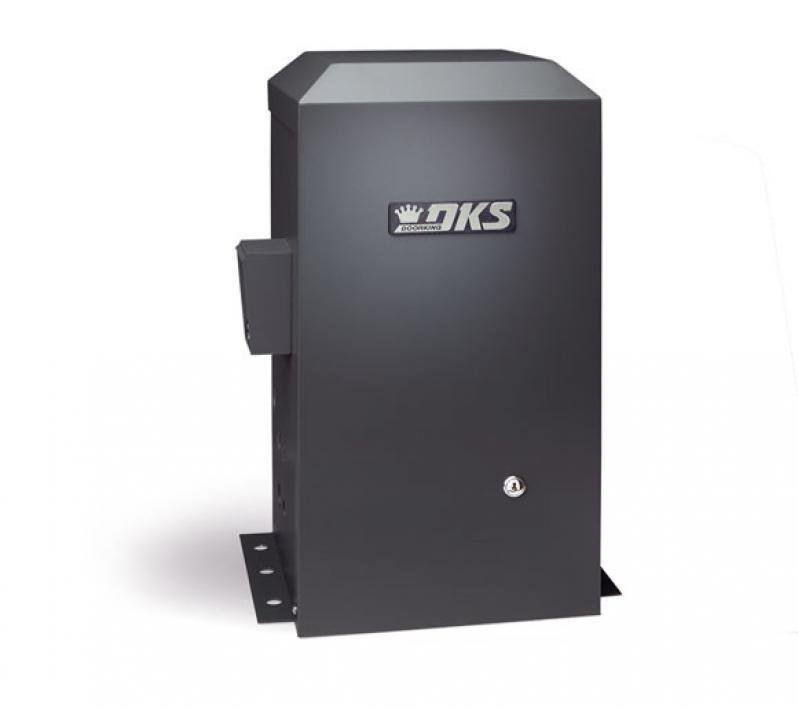

9050 Residential Slide Motor
Product Details
DKS 9050 Slide Gate Operator provides durability through high-cycle usage, all in a solid design. The innovative fail-safe design of these Operators significantly reduces the chance of injury or entrapment and makes these Operators the safest residential Slide Gate Operator in the market today.
Click to read more...
Designed with versatility in mind, the 9050 Operators can be configured for front, center or rear drive applications and can be pad or post mounted. These Operators are ideally used in residential and commercial applications for gate up to 16 ft (4.87 m), 500 lb (227 kg).
Features:
Self-adjusting, no maintenance magnetic limits.
Ports for plug-in loop detectors.
Two convenience outlets.
Fail-safe release (fail-secure optional).
Programming switches.
Built-in reset switch.
Built-in power On/Off switch.
Specifications:
Maximum gate length 16-feet.
Maximum gate weight 500 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
1/2 HP limited-duty motor.
115 VAC, 4.3 Amps.
Class I applications.
Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
12"W x 24"H x 11.5"D
Options:
Nickel plated chain.
Plug-in loop detectors.
Heater kit for cold environments.
Base plate to post mount this operator (does not include posts).
Surge suppressors.
