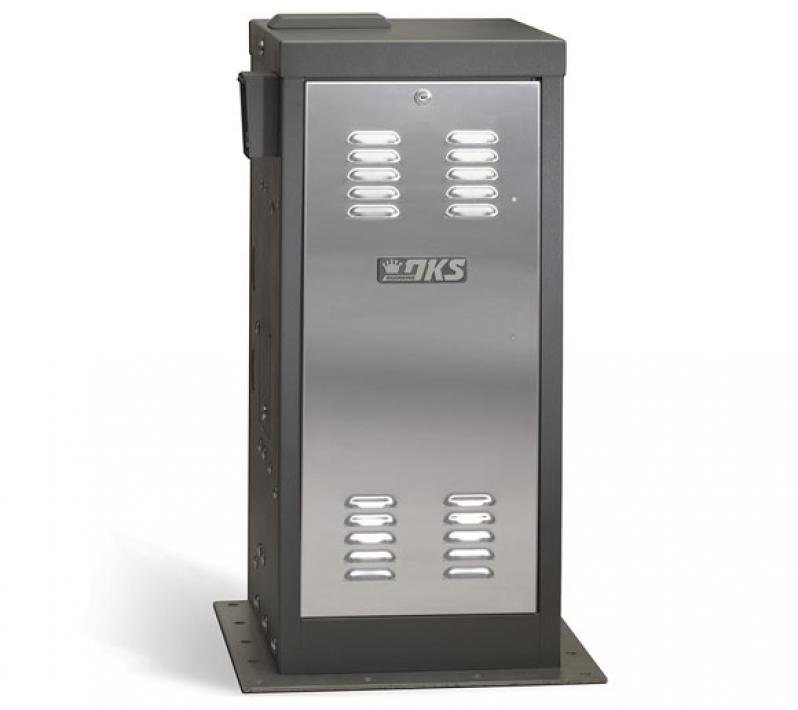

9200 Series Slide Motor
Product Details
DKS 9200 Series Operators are designed for maximum security applications only – such as industrial locations, loading docks, factories, prisons, airport security areas, sea ports, etc. Because of the need to prioritize security in these applications, these Operators are designed for fail-secure operation and require manual operation to open the gate in the event of a power outage.
Click to read more...
To enhance security, these Operators feature an anti-tailgating circuit and an adjustable partial open feature to help prevent unauthorized vehicle access. In addition, speed controller options allow the user to adjust the gate speed from 1/2 ft/sec up to 4 ft/sec. An Emergency Close feature is available on some models which will close the gate at 4 ft/sec. This assures your security gate is open the absolute minimum amount of time necessary.
Features:
Direct driven limit nuts.
Anti-tailgating feature.
Adjustable mid-stop.
Gate tracker reporting output.
Ports for plug-in loop detectors.
Two convenience outlets.
Fail-secure operation includes crank for manual operation.
Programming switches.
Built-in reset switch.
Built-in power On/Off switch.
Specifications:
9210
Maximum gate length 100-feet.
Maximum gate weight 3000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Set speed 1 Ft./sec.
40:1 gear reduction running in a continuous oil bath.
1 HP continuous-duty motor.
115, 208, 230 VAC single-phase, 208, 230, 460 VAC three-phase.
Operator is shipped with chain brackets and 20-feet of #60 chain.
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 20 "W x 35.5"H x 18"D
9220
Maximum gate length 100-feet.
Maximum gate weight 2000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Adjustable solid state speed control, 1/2 to 2 Ft./sec.
Slow start / slow stop function.
40:1 gear reduction running in a continuous oil bath.
2 HP continuous-duty motor.
208, 230 VAC single or three-phase.
Operator is shipped with chain brackets and 20-feet of #60 chain.
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions: 20 "W x 35.5"H x 18"D
9230
Maximum gate length 100-feet.
Maximum gate weight 5000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Adjustable solid state speed control, 1/2 to 2 Ft./sec.
Slow start / slow stop function.
40:1 gear reduction running in a continuous oil bath.
3 HP continuous-duty motor.
208, 230 VAC three-phase.
Operator is shipped with chain brackets and 20-feet of #60 chain.
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions w/pedestal: 31.5 "W x 47 "H x 16.5"D
9235
Maximum gate length 100-feet.
Maximum gate weight 3000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Adjustable solid state speed control, 1/2 to 4 Ft./sec.
Emergency Close 6 Ft./sec.
Slow start / slow stop function.
10:1 gear reduction running in a continuous oil bath.
Disc brake.
3 HP continuous-duty motor.
208, 230 VAC three-phase.
Operator is shipped with chain brackets and 20-feet of #60 chain.
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions w/pedestal: 31.5 "W x 47"H x 16.5"D
9240
Maximum gate length 100-feet.
Maximum gate weight 8000 Lb., #80 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Adjustable solid state speed control, 1/2 to 2 Ft./sec.
Slow start / slow stop function.
40:1 gear reduction running in a continuous oil bath.
3 HP continuous-duty motor.
208, 230 VAC three-phase.
Operator is shipped with chain brackets and 20-feet of #80 chain.
Class III and IV applications only.
ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Dimensions w/pedestal: 31.5 "W x 47"H x 16.5"D
Options:
Heavy-duty pedestal mounting stand, 9210, 9220. (Recommended for gates over 30-feet to allow use of a chain support rail).
Stop - Go traffic signal.
Plug-in loop detectors.
Heater kit for cold environments.
Surge suppressors.
