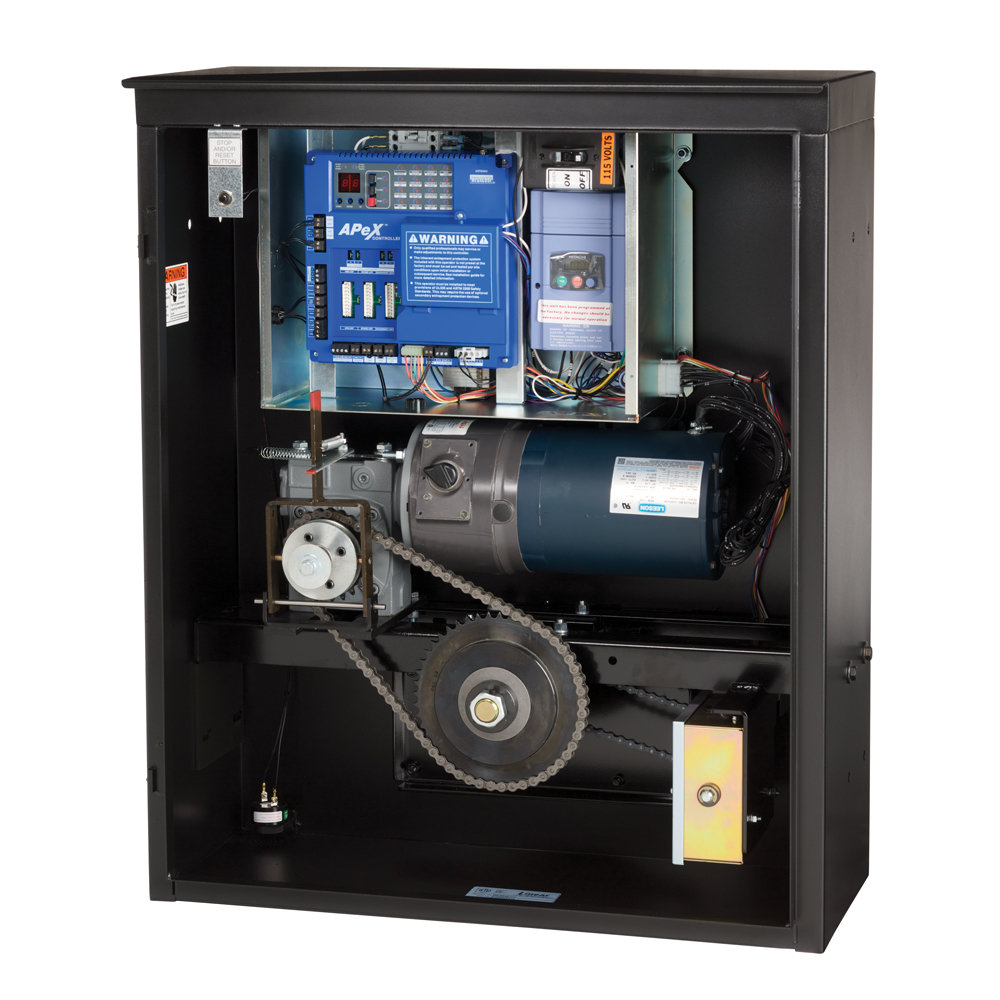

Vs-gslg series Slide Motor
Product Details
VS-GSLG SERIES - Industrial duty variable speed slide gate operator series, available in 1/2, 1, and 2 horsepower, various supply voltages and phases, 24" per second gate speed.
Click to read more...
General
Integral APeX Controller
Up to 24"/sec. gate speed
Soft start/soft stop
Programmable speed control
Direct C-face drive with brake
#50 roller drive chain
1/2, 1, or 2 HP motor
All voltages, single or three-phase
Emergency manual disconnect handle
Powder coat finish
Post mount standard; pad mount optional
Electrical
Variable speed - soft start/ stop programmable through variable frequency drive
1/2 to 2 HP industrial, continuous-duty, three-phase, 56-frame motors
Double C-face brake
Power on/off switch
Duplex receptacle on 115 VAC units
On-board APeX Controller three-button control station
AC and DC power available for access control accessories and reversing devices
All accessory connections 24 VDC
Easily adjustable rotary limit switches
Mechanical
Heavy-duty 10:1 right-angle C-face gear reducer
#50 roller chain and sprockets
Adjustable torque limiter
Heavy-duty pillow-block bearings
