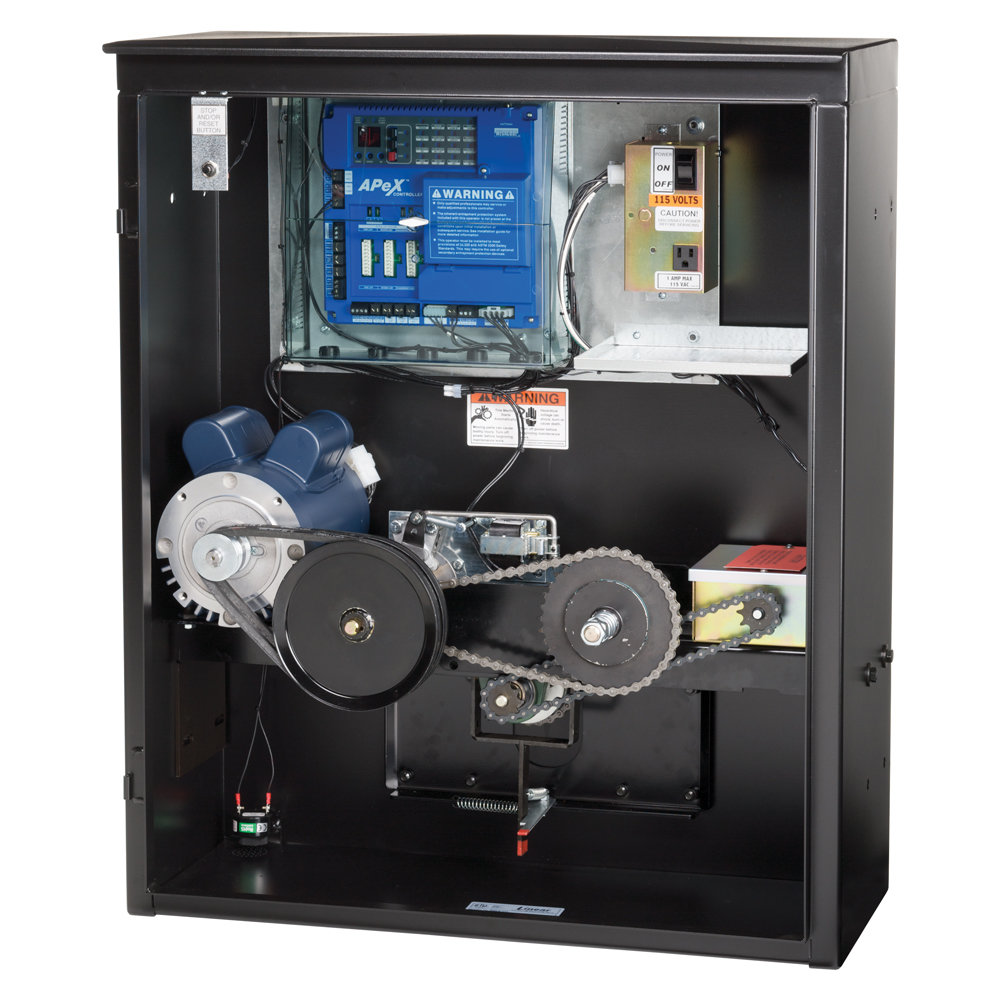

hslg series Slide Motor
Product Details
HSLG SERIES - Industrial / commercial duty slide gate operator series, available in 1/2, 3/4, and 1 horsepower, various supply voltages and phases, 10" per second gate speed.
Click to read more...
Integral APeX Controller
Double V-belt to chain reduction
#40 roller chain
1/2, 3/4, or 1 HP motor
All voltages, single or three-phase
Emergency manual disconnect handle
Powder coat finish
Post mount standard; pad mount optional
Electrical
Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
Continuous-tone entrapment alarm with reset button
Integrated warning beeper during gate movement
15 diagnostic LEDs on board for ease of setup and troubleshooting
Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
On-board APeX Controller three-button control station
AC and DC power available for access control accessories
All accessory connections 24 VDC
Solenoid disc brake
Duplex receptacle on 115 VAC units
Built-in master/slave capability using 3-wire shielded cable
Mechanical
Heavy-duty steel chassis
Adjustable torque limiter
#40 roller chain and sprockets
Efficient double V-belt drive
