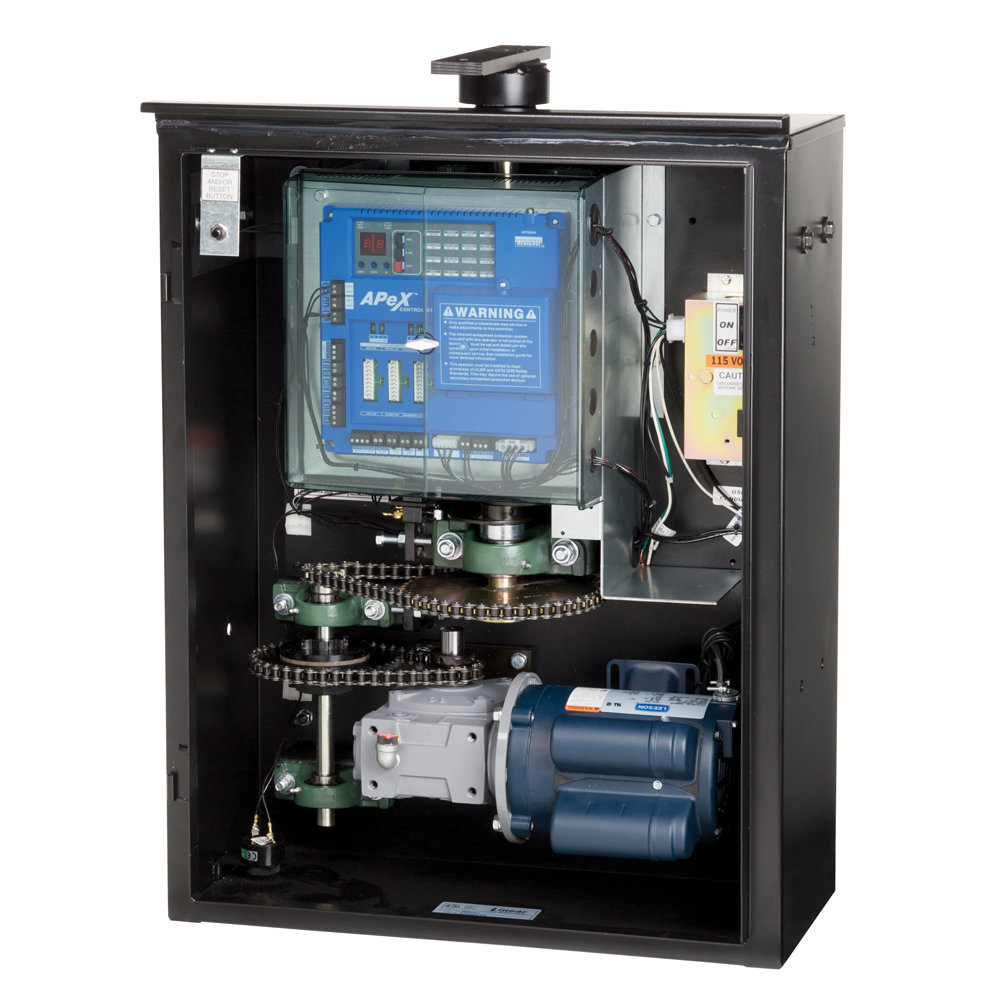

swg Series Swing Motor
Product Details
Industrial / commercial duty swing gate operator series, available in 1/2, 1, and 2 horsepower, various supply voltages and phases, 15 second gate opening speed.
Click to read more...
General
Integral APeX Controller
All voltages, single or three-phase
Emergency disconnect
Electrical power disconnect
Emergency stop/reset button on front cover
On-board APeX Controller three-button control station
Master/second built in
Durable powder coat finish
Right hand - left hand convertible
Timer to close
Post mount standard; pad mount optional
Powder coat finish
ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
Duplex receptacle on 115 VAC units
AC and DC power available for access control accessories and reversing devices
All accessory connections 24 VDC
Easily adjustable cam-operated limit switches
Mechanical
Heavy-duty gate arm assembly with harmonic design for smoother starts and stops
Over-center gate arm "locking" angle
Heavy-duty 60:1 right-angle C-face gear reducer
#40 roller chain and sprockets
Adjustable torque limiter
Heavy-duty pillow-block bearings
