vs-gswg Series Swing Motor
Product Details

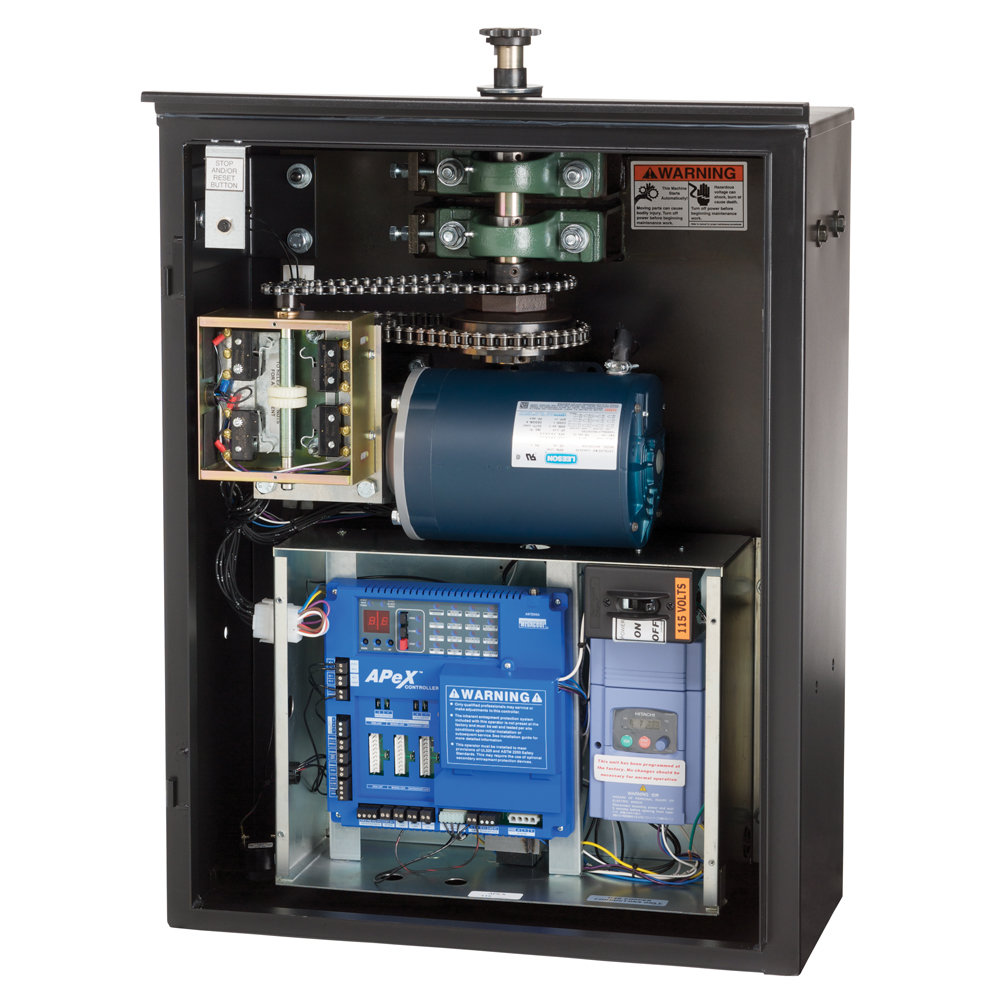

The Model VS-GSWG is a heavy-duty variable speed swing gate operator designed for smooth, secure and reliable operation of large, heavy swing gates. The positive locking linear drive arm design provides enhanced security, plus increased ability to withstand high wind loads - especially important for large, heavy gates. The VS-GSWG is available in 1/2, 1 or 2 HP, 115V-460V single- or three-phase power, 18-22 second gate opening speed.
Click to read more...
General
Integral APeX Controller
For large/heavy swing gates
Continuous-duty industrial 56-frame motor
Full variable speed
Soft start/soft stop capability
All voltages, single or three-phase
Emergency disconnect
Electrical power disconnect
On-board APeX Controller three-button control station
Master/second built in
Durable powder coat finish
Right hand - left hand convertible
Timer to close
Post mount standard; pad mount optional
Powder coat finish
ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
Variable speed - soft start/ stop programmable through variable frequency drive
Duplex receptacle on 115 VAC units
AC and DC power available for access control accessories and reversing devices
All accessory connections 24 VDC
Easily adjustable rotary limit switches
Mechanical
Heavy-duty 60:1 right-angle C-face gear reducer
Adjustable torque limiter
Exclusive linear drive arm
Heavy-duty pillow-block bearings
